81 bar
Max. Concrete Pressure
31 m3/hr
Max. Variable Output Rate
1.5 inch
Max. Grain Size
Twin Chromed
Concrete Cylinder
Reversible
Stroke Function
Max. Concrete Output
31 m3/hr
Max Concrete Pressure
81 bar
Horizontal Pumping Distance
297 m
Vertical Pumping Distance
122 m
Engine
Perkin 61 kW Diesel Engine
Concrete Cylinder Diameter
6 inch
Stroke Length
30 inch
Max. Aggregate Size
1.5 inch / 38 mm
Hopper Height
1016 mm
Outlet Size
5 inch
Weight
2159 kg
Dimension LxWxH (mm)
4064 x 1549 x 1626

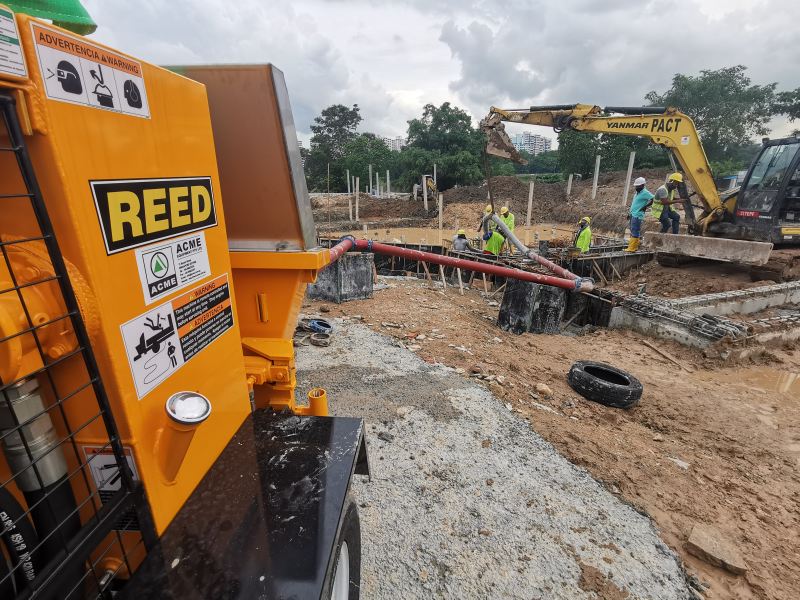

Powered by a diesel engine and variable displacement piston hydraulic pump, the A40HP is capable of high pumping power and pressure. This stable, trailer-mounted machine is well suited to handling underground, slope and tunnel construction sites.
Built for concrete and shotcrete works, it is most commonly used for wet shotcrete, precast casting, structural repair and concrete pumping. Its output volume is variable, allowing the same machine to be used for diverse applications.
Optimized for a long service life, core parts of the machine are heavy-duty and built to last, while wear parts are inexpensive and convenient to replace for ease of maintenance.
